1、 Machine tool model name

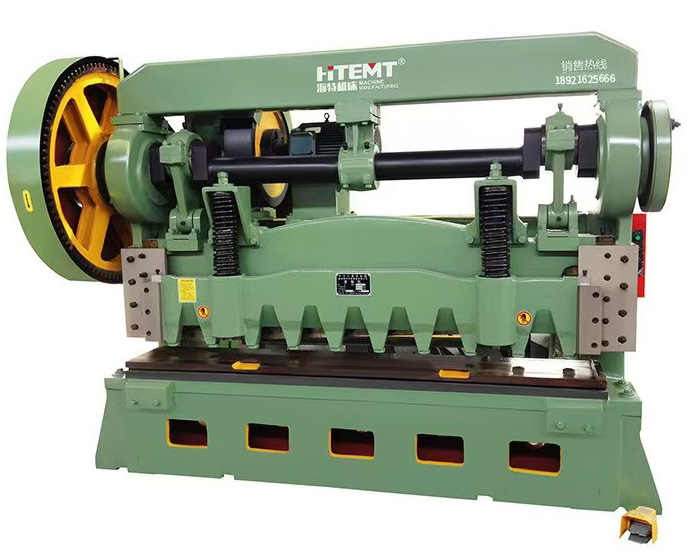

1. Model: Q11-13 * 2500 mechanical transmission shearing machine
2. Registered trademark: HITEMT

2、 Main parameters:
1. The maximum thickness that can be cut is 13 millimeters
2. The maximum board width that can be cut is 2500 millimeters
3. Rear blocking distance of 500mm
4. Travel frequency: 22-30 times/hour
5. Distance between columns 2600 millimeters
6. The strength of the sheared sheet metal is 450 N/square millimeter
7. Shear angle 3 degrees
8. Blade length 2540mm
9. The height of the workbench above the ground is 680 millimeters
10. Throat depth 230 millimeters
11. Motor model: Y180L-6 Power: 15KW Speed: 970 RPM
12. Dimensions: Length 3680mm, Width 2160mm, Height 2450mm
3、 The design, manufacturing and acceptance standards of the shearing machine shall be in accordance with the following national standards:
JB5197-91 "Technical Regulations for Cutting Machines"
JB T144404-93 "Precision of shearing machine"
4、 Machine noise measurement standard:
A-weighted sound pressure level LPA ≤ 82Db (A)
A-weighted sound power level LWA ≤ 94 Db (A)
5、 Performance characteristics:
1. Mature force type mechanical transmission shearing machine.
2. The upper and lower knife frames, as well as the wall panels, are all made of steel plates and welded together using a frame structure, with high strength.
3. Rectangular blade, all four cutting edges can be used, ensuring a long service life.
4. The transmission adopts mechanical transmission, which improves the accuracy of the parts.
5. The cutting speed is particularly fast, making it the king of various types of shearing machines.
6、 Equipment working environment:
1. Power requirements: three-phase four wire system, 380V 50HZ
2. Installation site: flat and firm
7、 List of Random Accessories and Supporting Parts
Number, Name, Quantity, Remarks
One foot switch
2-foot Rose set
3 feeler gauges, one
4 butter guns
5 sets of spring disassembly tools

8、 List of Random Technical Documents
Number, Name, Quantity, Remarks
One copy of the machine tool manual
One copy of the machine tool foundation diagram
One copy of the installation, transportation, and lifting diagram for machine tool 3
4. One copy of certificate of conformity and packing list

Note: Some of the above documents are bound in the same volume
9、 Installation and debugging, technical services, and after-sales service
Our company is committed to developing new products and improving product quality, while also establishing a relatively complete after-sales service network around the world and abroad. After sales service outlets are located throughout the country. To provide our users with more convenient and high-quality services:
1. The foundation of the equipment shall be provided with drawings by the supplier, and the specific construction shall be provided by the demander.
2. After the product is assembled at the supplier's factory, promptly notify the purchaser of the specific delivery time and the preparation work required for installation.
3. The supplier is responsible for the installation and commissioning of the equipment at the purchaser's site, and the purchaser cooperates and provides the necessary lifting equipment, power supply, and necessary conditions for installation.
4. During the installation and debugging process of the equipment by the demand party, the supplier shall provide free training and technical consulting services to the relevant technical personnel of the demand party.
5. After installation and debugging are completed, both parties shall jointly inspect and accept according to the technical agreement and relevant technical attachments signed by both parties.
6. The supplier's products are subject to the "three guarantees" from the date of sale, and the quality warranty period is one year after passing the acceptance inspection. During the warranty period, if the parts are damaged due to reasons not caused by the user, they will be replaced (vulnerable parts are not covered by the warranty). After the expiration of the warranty period, a lifetime warranty will be implemented and a production fee will be charged.
7. The supplier provides on-site service to the demander. After receiving the quality report from the customer, a response will be given within 2 hours and on-site repairs will be carried out within 48 hours.
Our company, based on the principle of friendly cooperation and comparison of quality and price, provides the above parameters and configurations for users' reference. If there are special requirements, we can negotiate with you. Welcome your company leaders to visit and provide guidance to our company.
