性能特點：
本機床是一種結構簡單緊湊，操作靈活可靠，使用維修按方便的剪切機床。該產品廣泛應用于造船廠、鍋爐廠、電機、電器、汽車維修、五金制造及其他金屬薄板加工行業。
Performance characteristics:

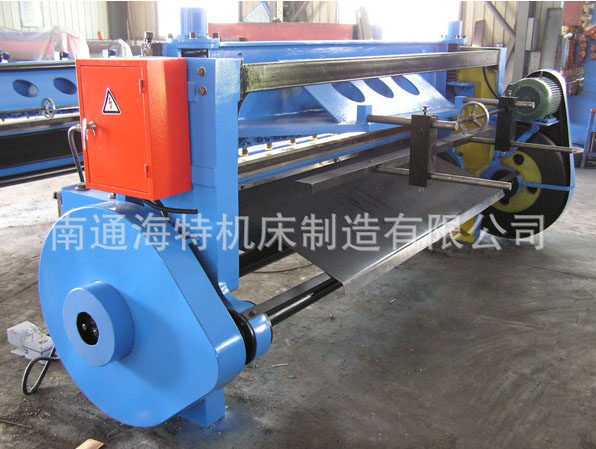

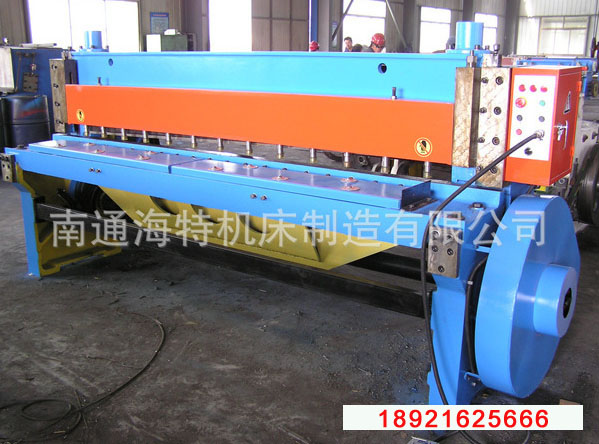

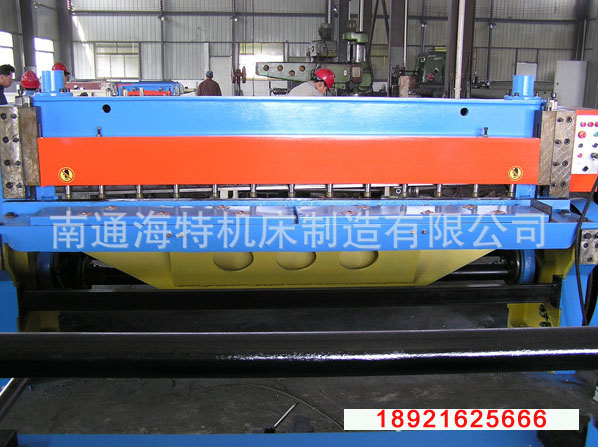

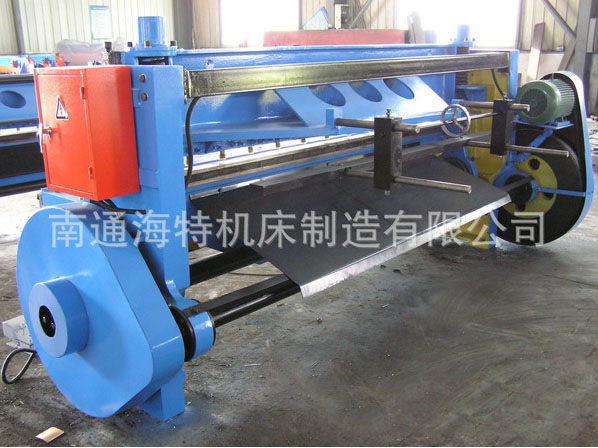

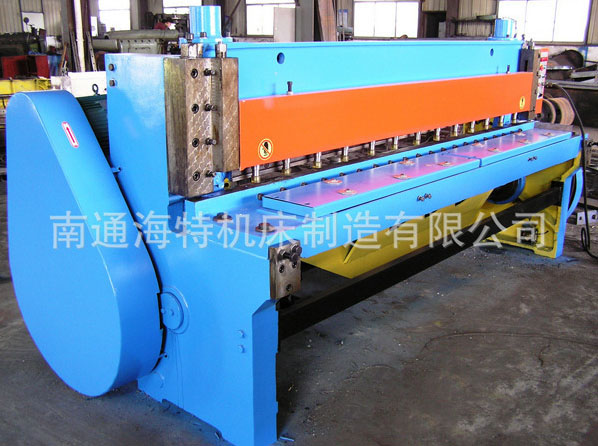

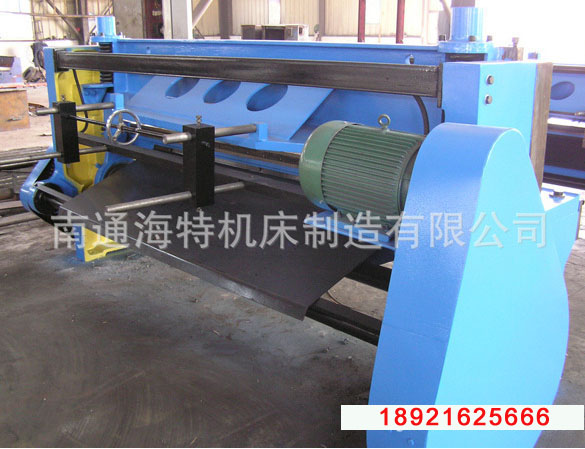

This machine tool is a simple and compact structure, flexible and reliable operation, and easy to use and maintain shearing machine tool. This product is widely used in shipyards, boiler factories, motors, electrical appliances, automotive maintenance, hardware manufacturing, and other metal sheet processing industries.
技術參數：Technical Specifications:
|
規格
Model |
可剪切最大板厚
Max cutting
Thickness(mm) |
可剪切最大板寬
Max cutting
Width(mm) |
行程次數
No.of stokes
(min-1) |
剪切角度
Rake angle |
后擋料距離
Adj.distance of
Back gauge(mm) |
主電機功率
Power of main motor (kw) |
外型尺寸
Overrall dimensions(mm) |
|
3×2000 |
3 |
2000 |
40 |
1°30′ |
500 |
3 |
2780×1505×1245 |
|
3×2500 |
3 |
2500 |
35 |
1°30′ |
500 |
5.5 |
3280×1505×1245 |
|
4×1300 |
4 |
1300 |
45 |
1°30′ |
350 |
5.5 |
2080×1505×1245 |
|
4×1500 |
4 |
1500 |
45 |
1°30′ |
350 |
5.5 |
2280×1505×1245 |
|
3×1300 |
3 |
1300 |
56 |
1°30′ |
350 |
3 |
2080×1505×1245 |
|
3×1500 |
3 |
1500 |
56 |
1°30′ |
350 |
3 |
2280×1505×1245 |
|
6×2000 |
6 |
2000 |
30 |
2° |
500 |
7.5 |
3175×1765×1530 |
|
6×2500 |
6 |
2500 |
30 |
2° |
500 |
7.5 |
3675×1765×1530 |
|
6×3200 |
6 |
3200 |
30 |
2° |
650 |
7.5 |
4375×1765×1530 |
|
8×2000 |
8 |
2000 |
25 |
2° |
500 |
11 |
3275×1865×1530 |
|
8×2500 |
8 |
2500 |
22 |
2° |
650 |
11 |
3775×1865×1530 |
|
8×3200 |
8 |
3200 |
20 |
2° |
650 |
11 |
4475×1865×1530 |
|
10×2000 |
10 |
2000 |
15 |
2° |
500 |
15 |
3560×2065×1630 |
|
10×2500 |
10 |
2500 |
13 |
2° |
650 |
15 |
4060×2075×1660 |
|
10×3200 |
10 |
3200 |
8 |
2° |
650 |
15 |
4760×2100×1690 |
|
13×2500 |
13 |
2500 |
10 |
3° |
500 |
15 |
3670×2160×2440 |
|
16×2500 |
16 |
2500 |
8 |
3° |
650 |
22 |
3595×2160×2440 |
|
20×2500 |
20 |
2500 |
6 |
3° |
650 |
30 |
3737×2830×2654 |
