產品特點：
　　整體焊接加工結構。
　　德國進口電液伺服閥及進口光柵尺構成的閉環控制方式，滑塊位置反饋精度高，運行準確平穩，同步性能好，折彎精度、滑塊的重復定位精度高。
　　后擋料可根據客戶需求采用功能更為齊全的多個后擋料軸的后擋料機構。
　　液壓系統采用集成式控制系統，減少了管路的安裝，克服漏油現象，確保了機床的工作穩定性，外形簡潔美觀。
　　液壓撓度自動補償機構，消除了滑塊變形對工件質量的影響，數控系統自動調整補償量，方便準確。
　　數控系統采用荷蘭DELEM、意大利ESA或瑞士CYBELEC電液伺服折彎機專用數控系統。

Product Features:
The overall welding processing structure.
The closed-loop control method composed of imported electro-hydraulic servo valves and imported grating rulers from Germany has high precision in slider position feedback, accurate and stable operation, good synchronization performance, high bending accuracy, and high repeatability of slider positioning.
The rear material blocking mechanism can adopt multiple rear material blocking shafts with more complete functions according to customer needs.
The hydraulic system adopts an integrated control system, which reduces the installation of pipelines, overcomes oil leakage, ensures the stability of the machine tool, and has a simple and beautiful appearance.
The hydraulic deflection automatic compensation mechanism eliminates the impact of slider deformation on workpiece quality, and the CNC system automatically adjusts the compensation amount, making it convenient and accurate.
The CNC system adopts specialized CNC systems for Dutch DELEM, Italian ESA, or Swiss CYBELEC electro-hydraulic servo bending machines.

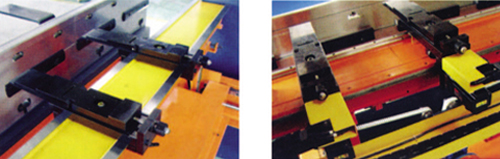

II(X、R)后擋料 II (X, R) rear blocking material	III（X、R、Z1、Z2后擋料 III (X, R, Z1, Z2 rear stop material)
II型：2個數控軸（X、R）         2手動調節軸（Z1、Z2） Type II: 2 CNC axes (X, R) 2 manual adjustment shafts (Z1, Z2)	III型：4個數控軸（X、R、Z1、Z2） Ⅵ型：5個數控軸（X、R、Z1、Z2、H） Type III: 4 CNC axes (X, R, Z1, Z2) Type VI: 5 CNC axes (X, R, Z1, Z2, H)
高精度光柵尺安裝于C型架上，克服了機身 　　變形對折彎精度的影響 The high-precision grating ruler is installed on the C-frame, overcoming the influence of body deformation on bending accuracy	液壓凸形油缸自動補償系統，克服了滑塊 　　變形對折彎精度的影響 The hydraulic convex cylinder automatic compensation system overcomes the influence of slider deformation on bending accuracy

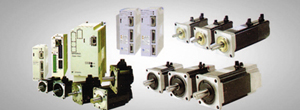

	進口高品質伺服系統 性能介紹： 轉矩控制、速度控制、位置控制三環一體；高速、高精度運轉;頻率響應高、整定時間短;自動調整內部增益;小體積、易操作、易接線 Imported high-quality servo system Performance Introduction: Integrated torque control, speed control, and position control; High speed and high-precision operation; High frequency response and short setting time; Automatically adjust internal gain; Small size, easy to operate, easy to wire

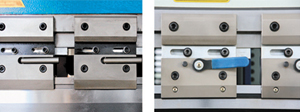

	快速換模夾緊裝置 Quick mold changing clamping device
	后擋料控制裝置 簡潔、穩定、可靠的后擋料控制，即簡潔又大方 Rear material control device Simple, stable, and reliable rear material control, both concise and elegant
