產品特點：
機型、刀架振動消除應力，整機焊接，經久耐用；
先進的集成式液壓系統，可靠性好；
采用三點支承滾動導軌，消除支承間隙，保證剪切質量；
上、下刀片采用四面刃，增加使用時間；
剪切角可電動調整，減小剪切板材變形量；
具有分段定長剪切功能；
電動后擋料，數字顯示，準確可靠；
剪切端面、剪切速度、剪切厚度優于同規格液壓擺式剪板機。
Product Features:
The machine model and tool holder vibration eliminate stress, the whole machine is welded, and it is durable and long-lasting;
Advanced integrated hydraulic system with good reliability;
Adopting three-point support rolling guide rails to eliminate support gaps and ensure shear quality;
The upper and lower blades adopt four sided blades to increase usage time;
The cutting angle can be electrically adjusted to reduce the deformation of the shearing plate;
It has the function of segmented fixed length cutting;
Electric rear gear shift, digital display, accurate and reliable;
The cutting end face, cutting speed, and cutting thickness are superior to those of hydraulic swing shearing machines of the same specifications.
|
|
|

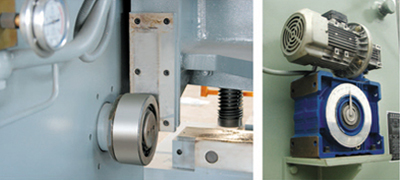

軌道采用合金鋼
The track is made of alloy steel
|
|
RV減速機調整刀片間隙
RV reducer adjusts blade clearance |
|
|
|

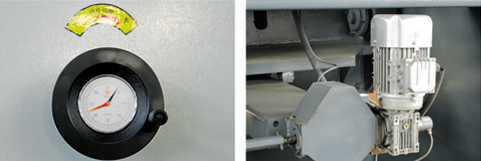

刀片間隙顯示
Blade gap display |
RV減速電機調整后檔板距離
Adjust the distance between the RV deceleration motor and the baffle after adjustment |
技術參數：Technical Specifications:
|
型號
model |
可剪板厚
Scissorable board thickness |
可剪板寬
Scissorable board width |
行程次數
number of trips |
后擋料范圍
Rear material range |
剪切角
Shear angle |
喉口深度
laryngeal inlet depth |
主電機功率
Main motor power |
外形尺寸
Overall dimensions |
|
mm |
mm |
min -1 |
mm |
° |
mm |
kw |
mm(L×W×H) |
|
4×2500 |
4 |
2500 |
25-45 |
600 |
0.5-1.5 |
100 |
5.5 |
3000×2000×1850 |
|
6×2500 |
6 |
2500 |
20-45 |
600 |
0.5-1.5 |
125 |
7.5 |
3030×2075×1920 |
|
6×3200 |
6 |
3200 |
16-45 |
600 |
0.5-1.5 |
125 |
7.5 |
3730×2075×1970 |
|
6×4000 |
6 |
4000 |
14-45 |
600 |
0.5-1.5 |
125 |
7.5 |
4530×2075×2080 |
|
6×5000 |
6 |
5000 |
11-40 |
800 |
0.5-1.5 |
125 |
7.5 |
5530×2075×2210 |
|
6×6000 |
6 |
6000 |
9-36 |
800 |
0.5-1.5 |
125 |
11 |
6530×2075×2520 |
|
7×7000 |
7 |
7000 |
7-28 |
800 |
0.5-1.5 |
125 |
11 |
7530×2075×2830 |
|
8×2500 |
8 |
2500 |
20-45 |
600 |
0.5-1.5 |
125 |
11 |
3040×2075×1920 |
|
8×3200 |
8 |
3200 |
16-45 |
600 |
0.5-1.5 |
125 |
11 |
3740×2075×1920 |
|
12×2500 |
12 |
2500 |
12-35 |
800 |
0.5-2 |
125 |
15 |
3110×2575×2210 |
|
12×3200 |
12 |
3200 |
7-35 |
800 |
0.5-2 |
125 |
15 |
3810×2575×2420 |
|
12×4000 |
12 |
4000 |
8-35 |
800 |
0.5-2 |
125 |
15 |
4610×2575×2530 |
|
16×2500 |
16 |
2500 |
16-40 |
800 |
0.5-2.5 |
125 |
22 |
3130×2655×2200 |
|
16×3200 |
16 |
3200 |
12-40 |
800 |
0.5-2.5 |
125 |
22 |
3830×2655×2200 |
|
16×4000 |
16 |
4000 |
12-40 |
800 |
0.5-2.5 |
125 |
22 |
4630×2655×2570 |
|
20×2500 |
20 |
2500 |
16-40 |
800 |
0.5-2.5 |
125 |
30 |
3160×2855×2300 |
|
20×4000 |
20 |
4000 |
12-40 |
800 |
0.5-2.5 |
125 |
30 |
4660×2855×2720 |
|
25×2500 |
25 |
2500 |
8-15 |
800 |
0.5-3.5 |
120 |
37 |
3330×2000×2650 |
|
25×3200 |
25 |
3200 |
8-15 |
800 |
0.5-3.5 |
120 |
37 |
3970×2100×2865 |
|
25×4000 |
25 |
4000 |
6-12 |
1000 |
0.5-3.5 |
120 |
37 |
4780×2500×3150 |
|
32×2500 |
32 |
2500 |
6-12 |
1000 |
0.5-3.5 |
120 |
45 |
4100×2300×3200 |
|
32×3200 |
32 |
3200 |
8-12 |
1000 |
0.5-3.5 |
120 |
55 |
1900×2650×3450 |
|
40×2500 |
40 |
2500 |
4-10 |
1000 |
0.5-3.5 |
120 |
75 |
4100×2550×3500 |
|
40×3200 |
40 |
3200 |
4-10 |
1000 |
0.5-3.5 |
120 |
75 |
4900×2900×37 |
